19 inch sunlight readable LCD kit, P/N: MS190WUBLCDKIT1200, 1200 nits


Input Source: DVI and VGA
Price:
$469.99

Description

This 19 inch LCD kit (ratio: 16:10 Widescreen) had upgraded to UB60 series LED backlight kit. It is designed to be easily integrated into (or Replacing your existing defective LCD monitor) kiosks, POS, avionics, Vending machine, gaming and all other applications. It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:

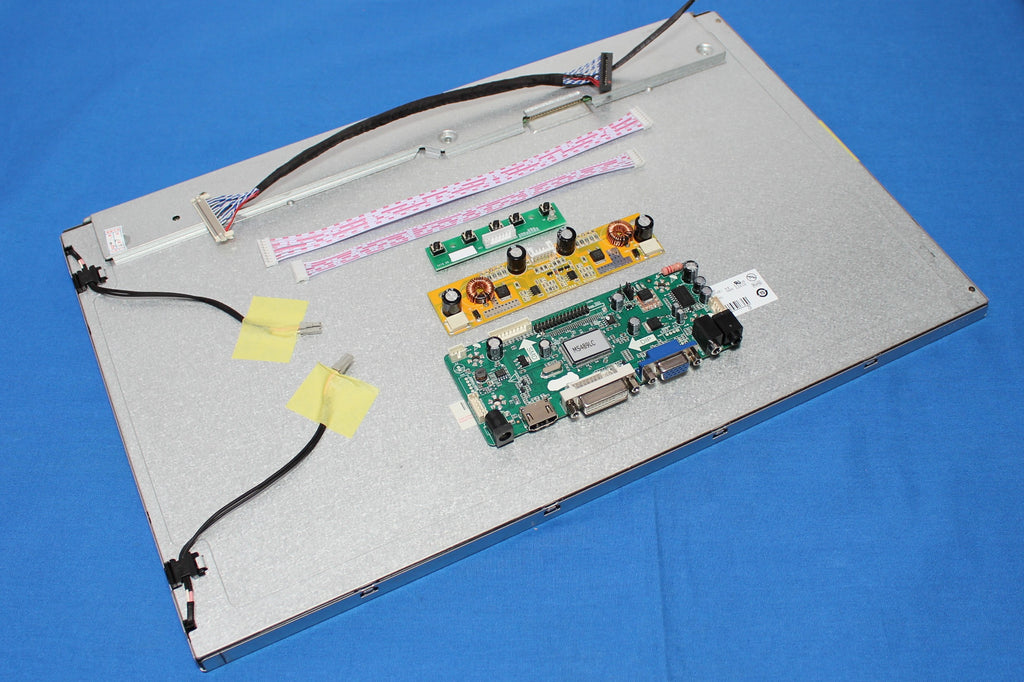

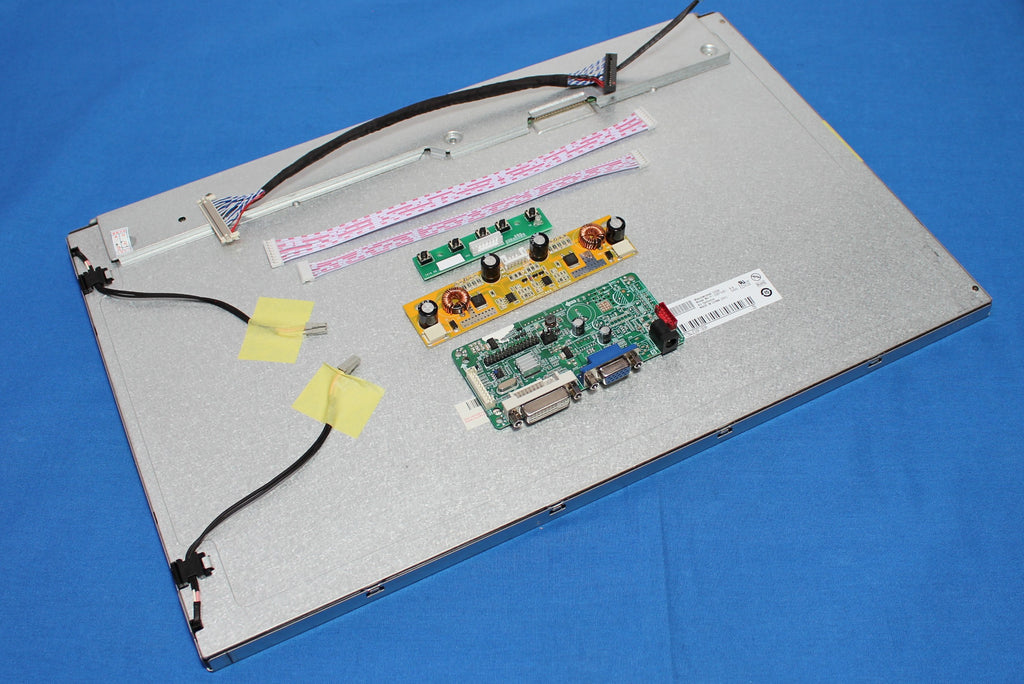

MS190WUBLCDKIT1200 kit included the following items:
19 inch LCD, upgraded to Sunlight Readable LED kit (1440X900)
MS460LC LCD Controller(or MS489LC)
MS615UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
OSD: Chinese, English, French, Italian, German, Korean. Russian & Spanish
Key Functions: On/Off, Menu, Auto, +, - (5 Buttons)
Compact Size:
DVI and VGA(S460LC): 110mm(L) X 55mm(W) X 20mm(H)
DVI, HDMI and VGA(MS489LC): 58 mm(L) X 140mm(W) X 20mm(H)
Automatic image scaling and contrast enhancement.
AC-DC Adapter is NOT included.
LCD Specifications:
Item Unit Specifications
Screen Size [inch] 19
Native Resolution 1440 X 900
Active Area [mm] 408.24(H) X 255.15(V)
Outline dimension [mm] 428.0(W) X 278.0(H) X 16.5(D)
Bolt Hole Dimension [mm] 98 X 98
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 1200
Contrast Ratio 2000:1
BackLight Connector BHSR-02VS-1X2
Backlight Inverter Substitute MS668DI
Response time, Rising msec 3.6
Response time, Falling msec 1.4
Viewing Angle - Horizontal degree 170
Viewing Angle - Vertical degree 160
