NL6448BC33-70F


Price:
$641.57
 More payment options

Description

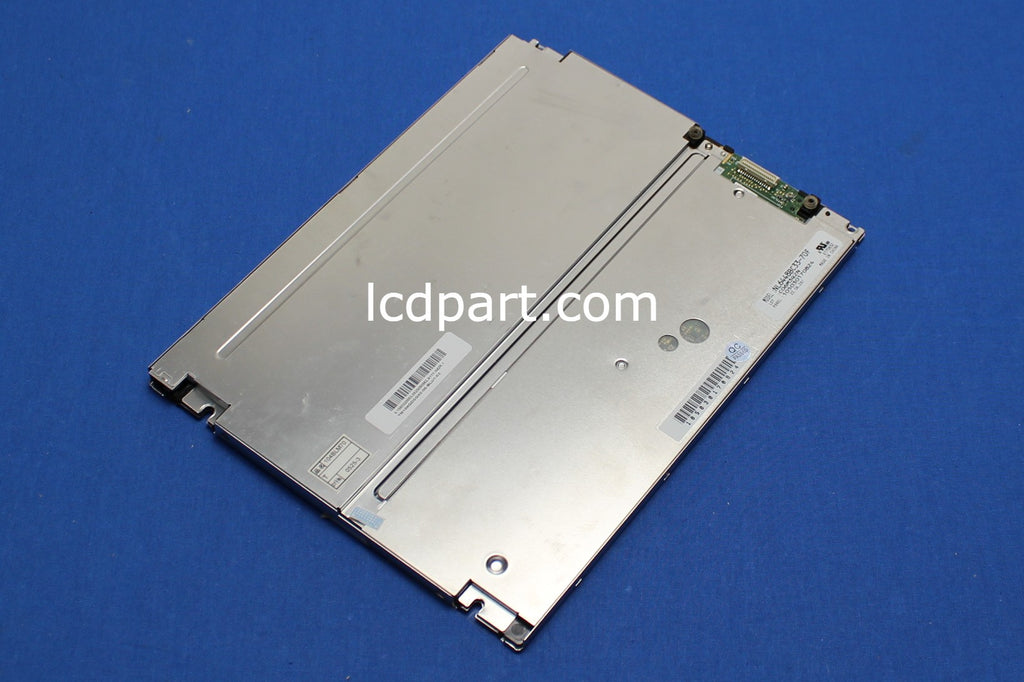

Refurbished (like new condition) NEC NL6448BC33-70F LCD Screen. 90 days warranty.
NEC NL6448BC33-70F, one of the most popular LCD screens in control industrial and medical applications. This 10.4 inch NL6448BC33-70F is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 900 nits (based on its datasheet). By upgrading to our 104LHS-LED LED kit, it can reach 1500 nits or higher.
It is easy to install ! Anyone can do it! No technical skills required! Soldering is required! Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire! 90 days warranty.
LED Upgrade kit for NL6448BC33-70F , is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4 (V)
Outline dimension [mm] 243.0(W) X 185.1(H) X 10.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness TTL-DF9-2829
Electrical Interface TTL
White Luminance [cd/m2] 900
Contrast Ratio 900
Backlight Connector SHR-08V-S, 1.0MM, 104LHS57
Backlight Inverter 104PW01F
Response time, Rising msec 10
Response time, Falling msec 20
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit 104LHS-LED
