G150XTN03.1


Price:
$438.43

Description

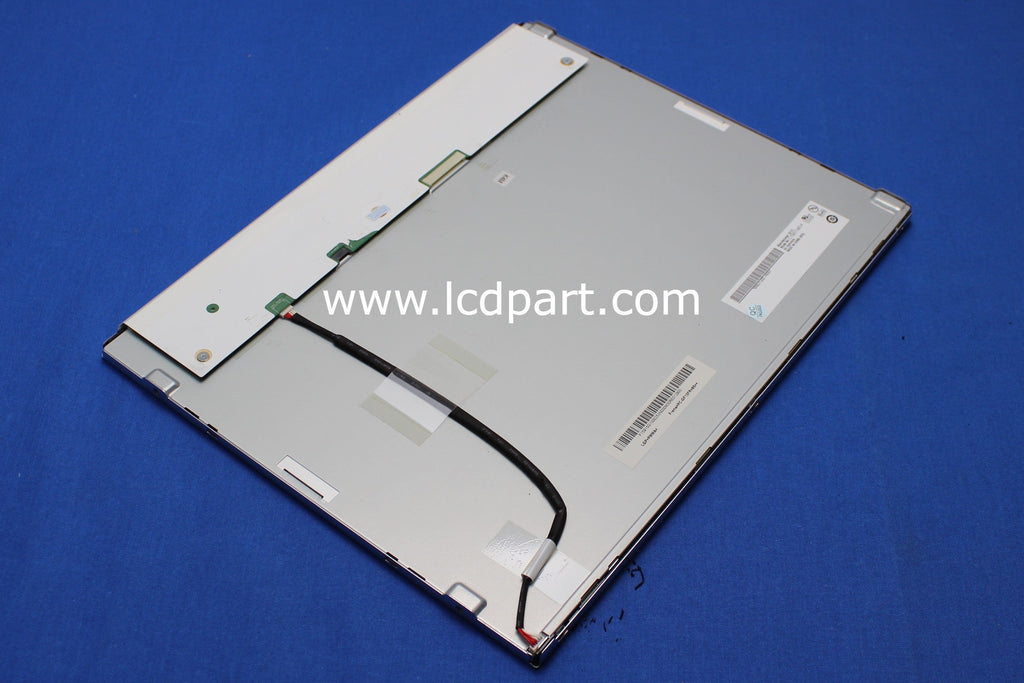

This refurbished AUO G150XTN03.1 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
AUO G150XTN03.1, one of the most popular LCD screens in control industrial and medical applications. This 15 inch AUO G150XTN03.0 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 350 nits (based on its datasheet). By upgrading to our SB44318X11R5+MS640EXT LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
How to Connect
LED upgrade kit for AUO G150XTN03.1, is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (8 bit, 8BO)
White Luminance [cd/m2] 250
Contrast Ratio 700:1
BackLight Connector H208K-P05N-02B, 1.25mm 5P(MS542EXT)
Backlight Inverter P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C
Response time, Rising msec 1.2
Response time, Falling msec 5.7
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 80
Compatible with MS150RMS542EXTDF1420D18B
LCD controller kit DF14-20P-1LVDS_1024X768-8B+MS542EXT
LED Backlight kit SB44318X11R5+MS640EXT
Direct Replacement LCD MS150RSBDF1420D1
