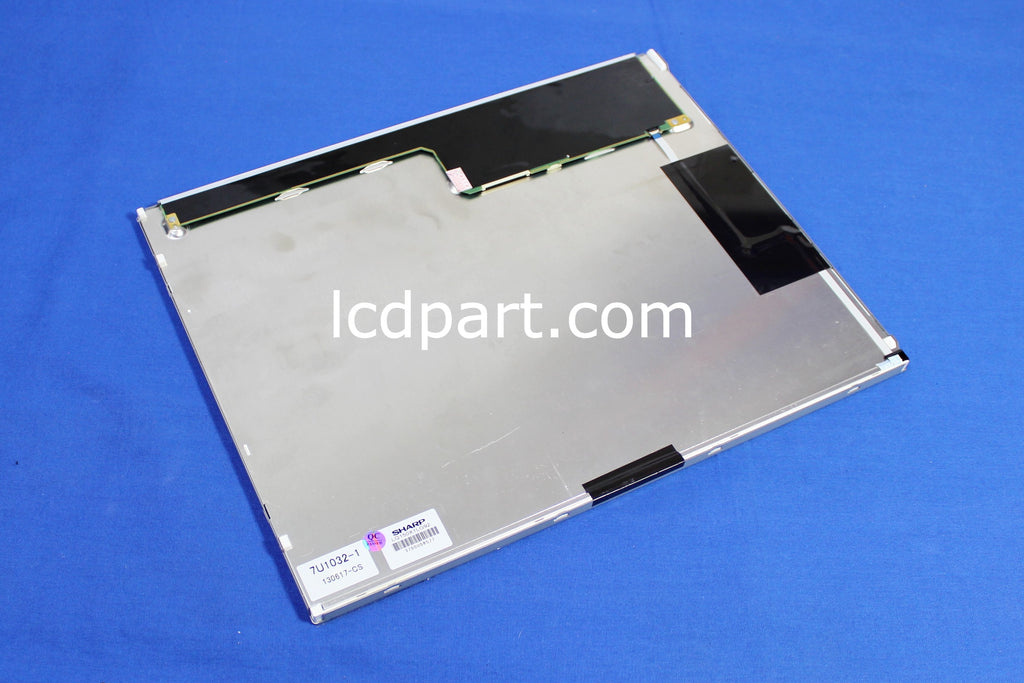

LQ150X1LX96 15 inch Sharp LCD screen


Price:
$487.30

Description

This New Sharp LQ150X1LX96 LCD screen. 90 days warranty
Sharp LQ150X1LX96, one of the most popular LCD screens in control industrial and medical applications. This 15 inch Sharp LQ150X1LX96 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 400 nits (based on its datasheet). By upgrading to our SB44318X11R5 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty.

General Specifications:

Item Unit Specifications (BOX27)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1((V)
Outline dimension [mm] 326.5(W) X 253.5(H) x 9.6(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(8-bit), P20, 6 Bit=H(3.3V), 8 Bit=O/NC
White Luminance [cd/m2] 500
Contrast Ratio 1500:1
BackLight Connector SHLP-06V-S-B 6P 1.0mm(MS573EXT)
Backlight Inverter P1/P2=12V, P3/P4=GND, P5=ENA, P6=PWM
Response time, Rising msec tr+tf=35
Response time, Falling msec N/A
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
Compatible with MS150RMS573EXTDF1420D18B
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
LED Backlight kit SB44318X11R5
Direct Replacement LCD MS150RSBDF1420D1
