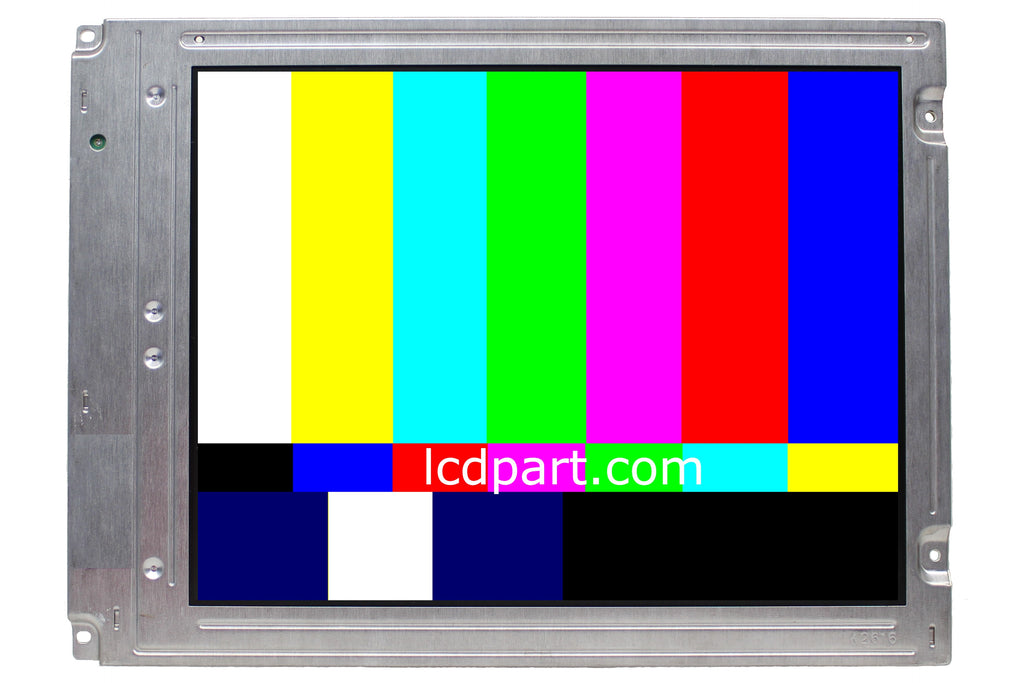

MS104RD5+DISENA. Direct replacement for 10.4" Sharp LCD, 1200 nits


Price:
$1,142.90

Description

MS104RD5+DISENA is a direct replacement for the 10.4" Sharp LCD Screen. MS104RD5+DISENA has a much better image quality and is much brighter than old Sharp LCD screens. Wider viewing angle and faster response time then old Sharp LCD screens. It has upgraded our Sunlight Readable LED Kit and MS104RUD5+DISENA will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 90 days warranty!

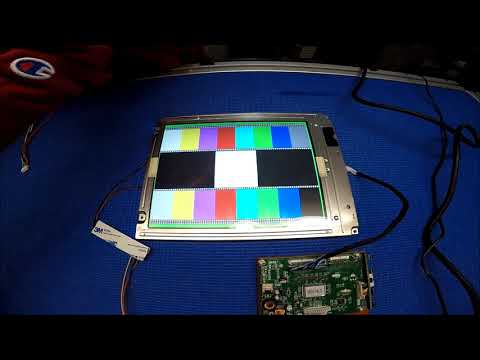

Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on Sharp LCD screen
Remove old LCD Screen
Mount MS104RD5+DISENA back to the same location*
Connect Screen wire harness to MS104RD5+DISENA
Connect Ground (GND) to Black wire
MS104RD5+DISENA has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
MS104RD5+DISENA included the following items:
Refurbished 10.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
6 pin pigtail connector with Red and Black wires
Compatible with the following Manufacturers and Models:
Manufacture Size LCD Screen
Sharp 10.4"  LQ104V1DG11, LQ104V1DG21, LQ104V7DS01
Sharp 10.4" LQ10D41, LQ10D42, LQ10D341
Sharp 10.4" LQ10D421
