AA104SG04 10.4 inch Mitsubishi LCD screen


Price:
2.168 kr

Description

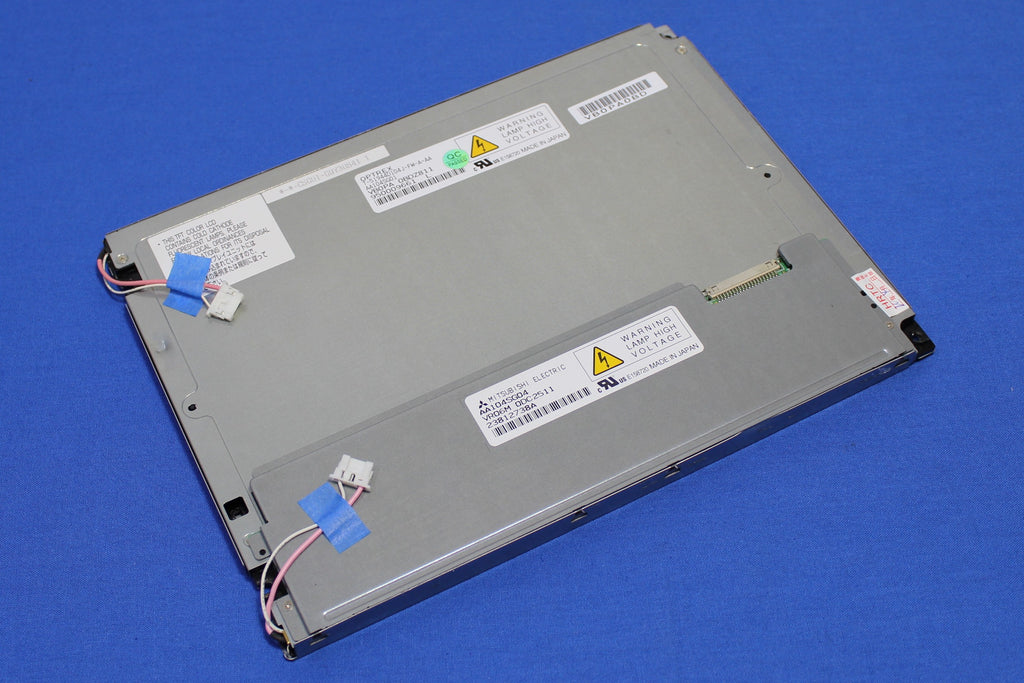

This refurbished Mitsubishi AA104SG04 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
Mitsubishi AA104SG04, one of the most popular LCD panels in an industrial application. This 10.4 inch Mitsubishi AA104SG04 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB35220LED4215X2+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Mitsubishi AA104SG04 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 243.0(W) X 181.6(H) X 12.2(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(6-bit), P19: 6 Bit=O/NC, 8 Bit=H(3.3V)
White Luminance [cd/m2] 400
Contrast Ratio 600:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec 6
Response time, Falling msec 19
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800X600-6Bit
LED Backlight kit UB35220LED4215X2+MS610UB
