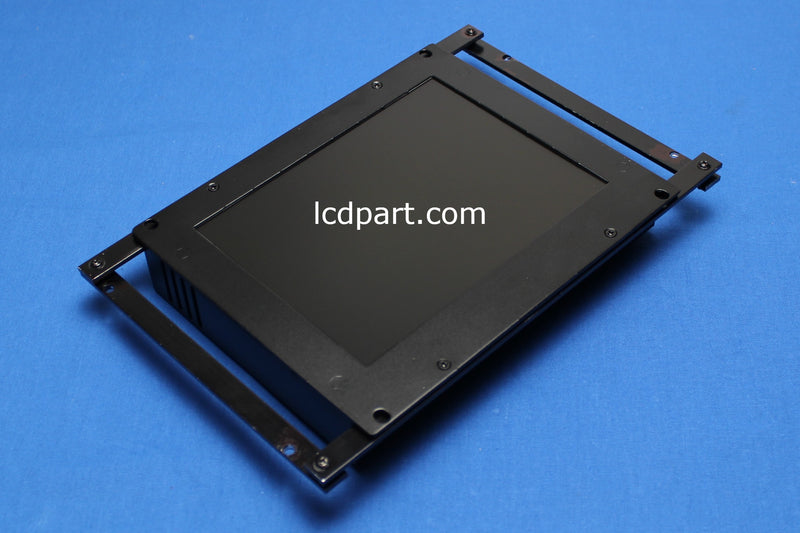

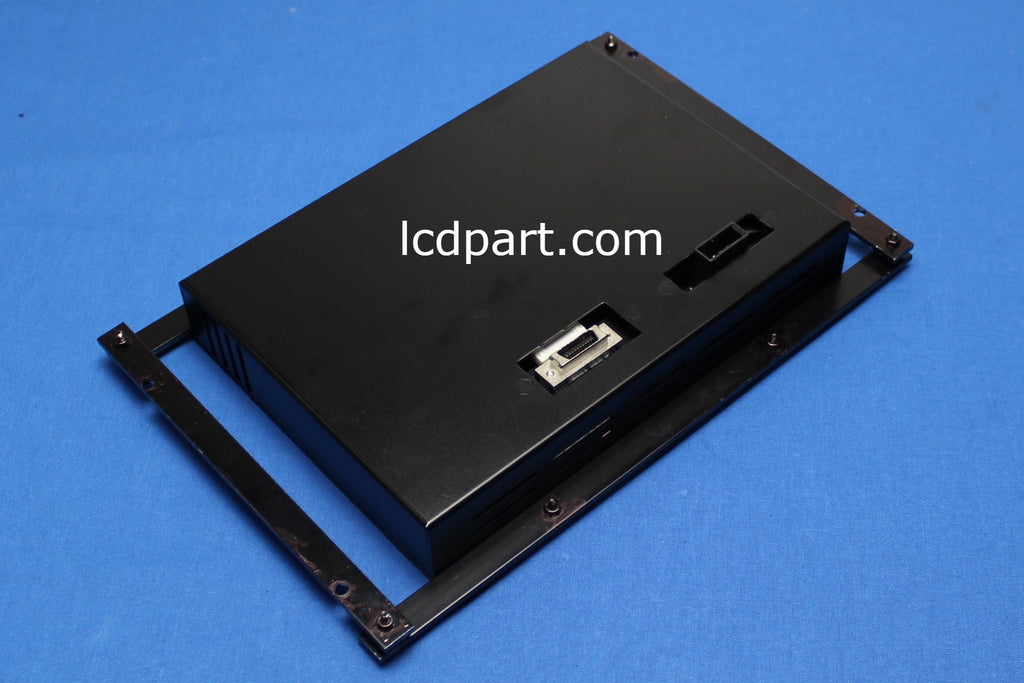

A02B-0200-C115 Retrofit LCD Monitor. P/N: A02B-0200-C115-RETROFIT


Price:
$899.99

Description

A02B-0200-C115-LCD retrofit LCD monitor is for Fanuc A02B-0200-C115 monitor. It has the same screw hole position that you can mount directly on the original CNC metal frame that used to mount CRT Monitor. A02B-0200-C115-RETROFIT has been upgraded to our sunlight readable LED kit. Easy to install, No technical skill required! No soldering required! Anyone can do it! A02B-0200-C115-RETROFIT comes with a 1 year warranty.

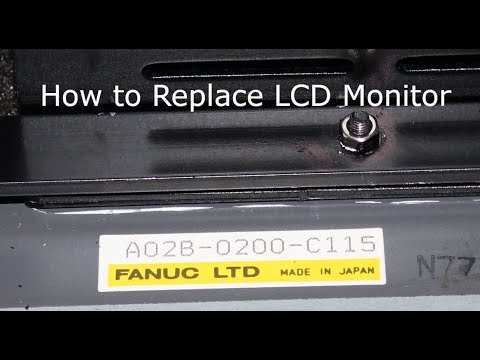

Installation takes about 15 minutes:
Disconnect video signal connector and power supply connector on A02B-0200-C115
Remove old A02B-0200-C115 display assembly from front metal frame
Mount A02B-0200-C115-RETROFIT back to the same metal frame.
Connect old video signal connector to A02B-0200-C115-RETROFIT
Connect existing power supply wire to A02B-0200-C115-RETROFIT
Dimension: 210mm(8.26) X 180mm(7.08) X 40MM(1.58)
Mounting Bracket: 273mm(10.75) X 180mm(7.08)
Bolt Hole: 120mm(4.72) X 135mm(5.32)
