Description

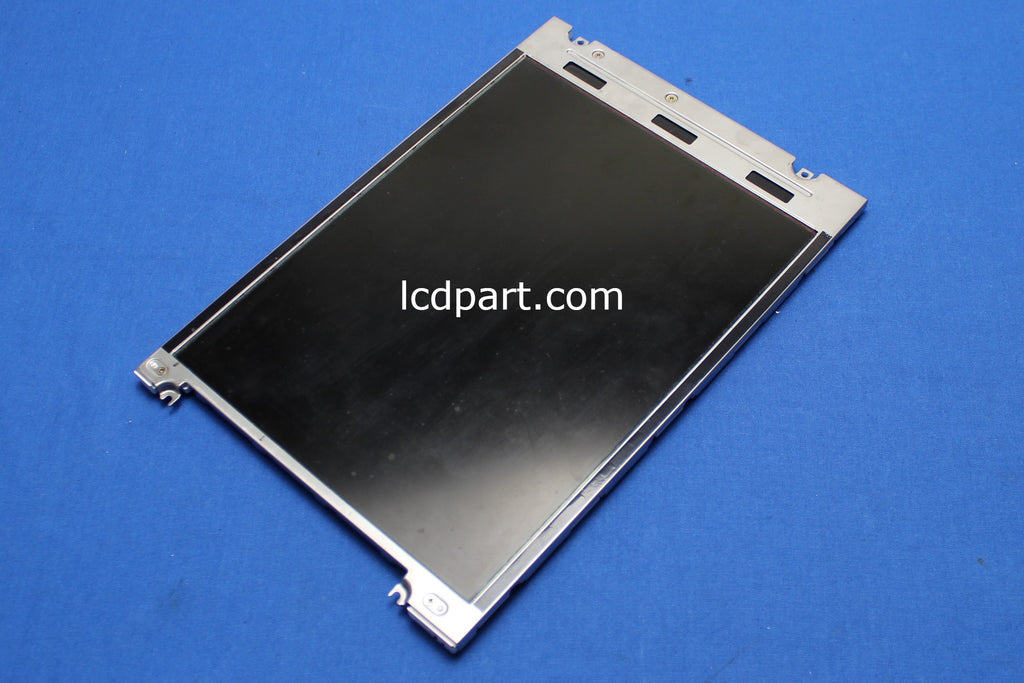

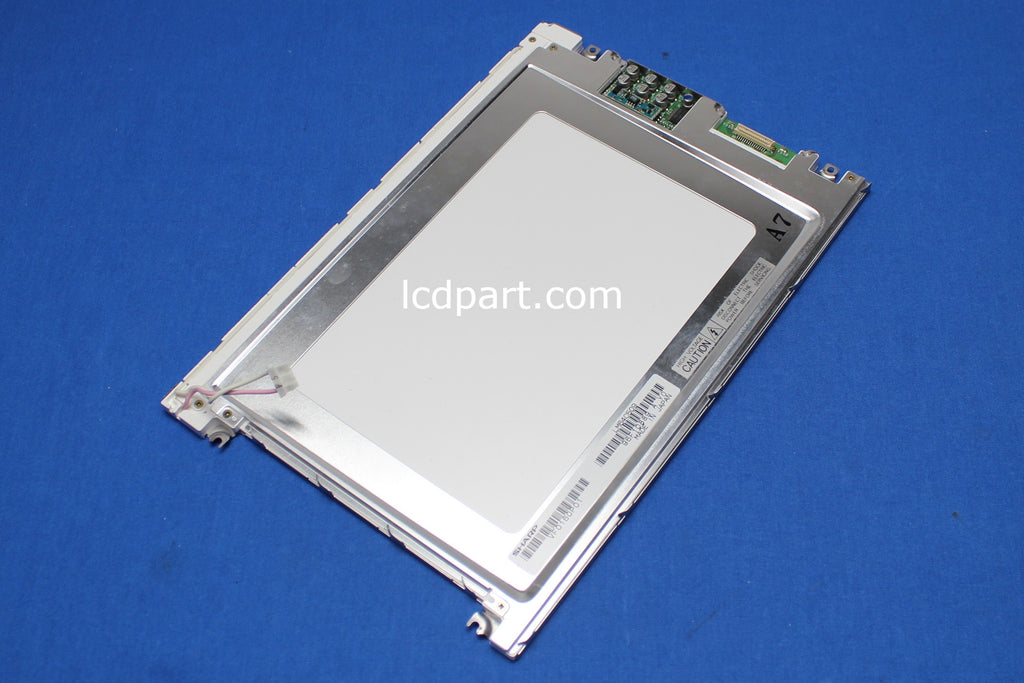

This refurbished Sharp LM64C509 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Sharp LM64C509, one of the most popular LCD panels in an industrial application. This 9.4 inch Sharp LM64C509 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB35 series LED kit is the best option(LED Upgrade kit for LM64C509 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
A wire connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 196(H) X 147.6(V) |
Outline dimension | [mm] | 264W) X 180.5(H) X 8(D) |
Bolt Hole Dimension | [mm] | 130.5 X 130.5 |
Input Voltage VDD | [Volt] | N/A |
Screen Wire Harness | TTL-DF9-31-CUSTOM | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | N/A |
Contrast Ratio | N/A | |
Backlight Connector | M61M73-04 | |
Backlight Inverter | N/A | |
Response time, Rising | msec | N/A |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | N/A |
Viewing Angle - Vertical | degree | N/A |
LED Backlight Kit | UB35120X13R3D |
