Description
Refurbished Hitachi LMG9460XUCC. 90 days warranty

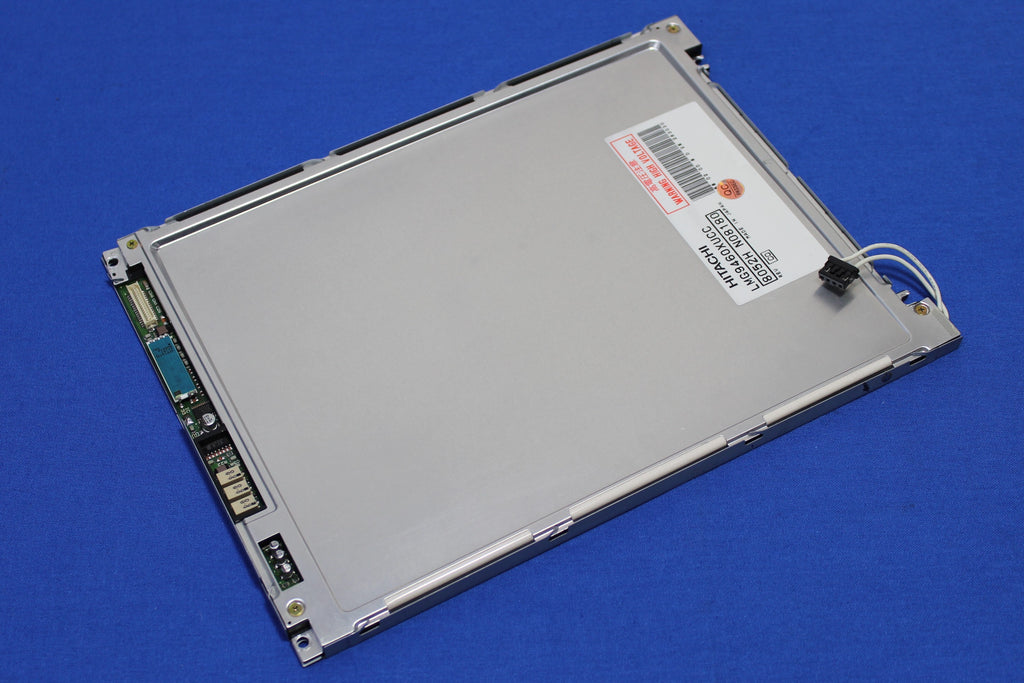

Hitachi LMG9460XUCC, one of the most popular LCD panels in an industrial application. This 10.4 inch Hitachi LMG9460XUCC is originally equipped with single CCFL back light lamp. To extend its life and improve its performance, upgrading it to our UB35220LED4215X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Hitachi LMG9460XUCC is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 214.2(W) X 161.4(H) |
Outline dimension | [mm] | 242.5(W) X 179.4(H) X 11.5(D) |
Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | TTL-DF9-31 Custom | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | N/A |
Contrast Ratio | 30 | |
BackLight Connector | N/A | |
Backlight Inverter | N/A | |
Response time, Rising | msec | 220 |
Response time, Falling | msec | 80 |
Viewing Angle - Horizontal | degree | 30 |
Viewing Angle - Vertical | degree | 30 |
LED Backlight kit | UB35220LED4215X1+MS610UB |
