Description
LTM10C209A is a very old LCD screen that is discontinued (obsolete). However, LTM10C209A is still available on the worldwide web. The condition of Toshiba LTM10C209A varies widely. Such as are listed as new, good, used and refurbished. Unfortunately, because of its aged. Toshiba LTM10C209A is NOT RELIABLE at all nowadays. LTM10C209A will cause all kinds of problems in a short time period after replacement.
LTM10C209A-LCD is a direct replacement for Toshiba LTM10C209A. LTM10C209A-LCD has a much better image quality and is much brighter than old LTM10C209A. Wider viewing angle and faster response time then old Sharp LTM10C209A. It has upgraded our Sunlight Readable LED Kit and LTM10C209A-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty! We ship worldwide.
Installation takes about 15 minutes:
Disconnect CCFL lamp wire harness and remove CCFL inverter.
Disconnect Screen wire harness on LTM10C209A
Mounted MS610UB LED driver on same location
Remove old LTM10C209A
Mount LTM10C209A-LCD back to the same location

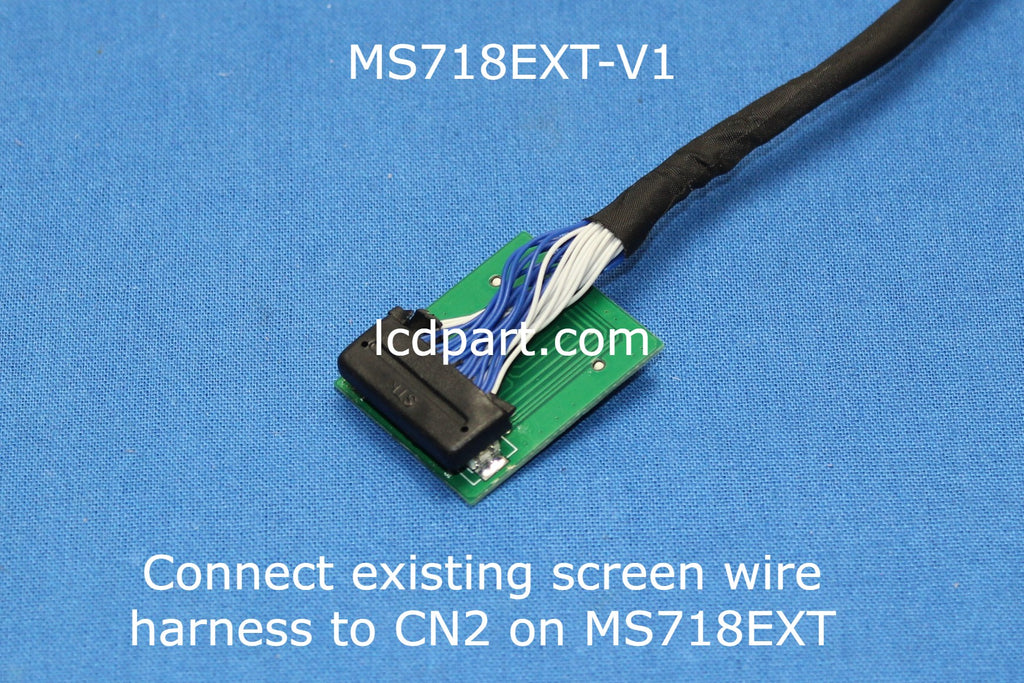

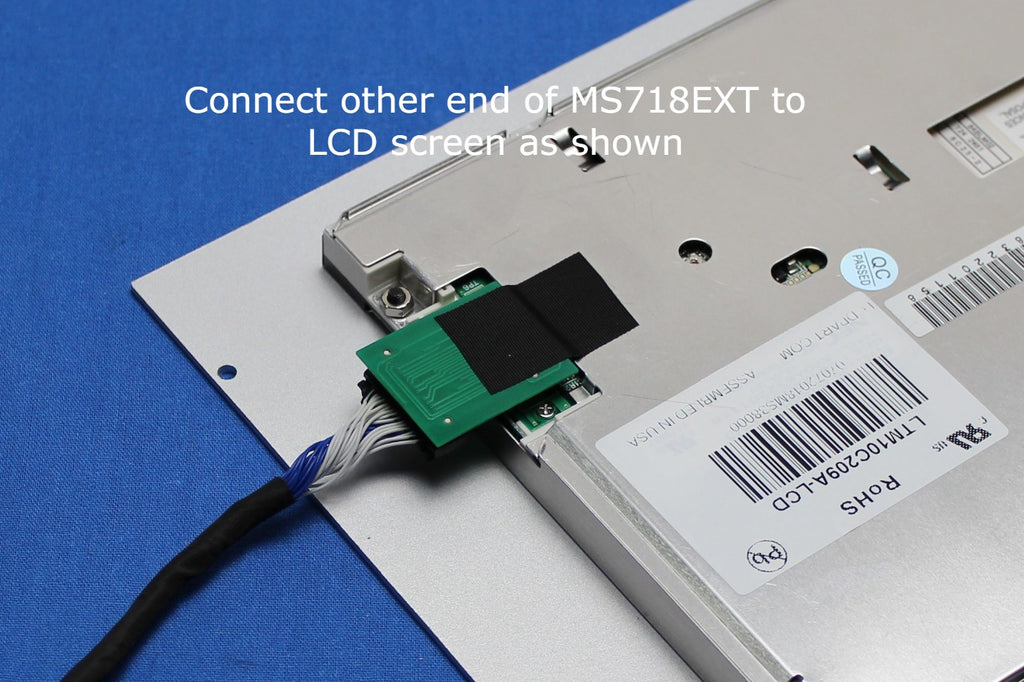

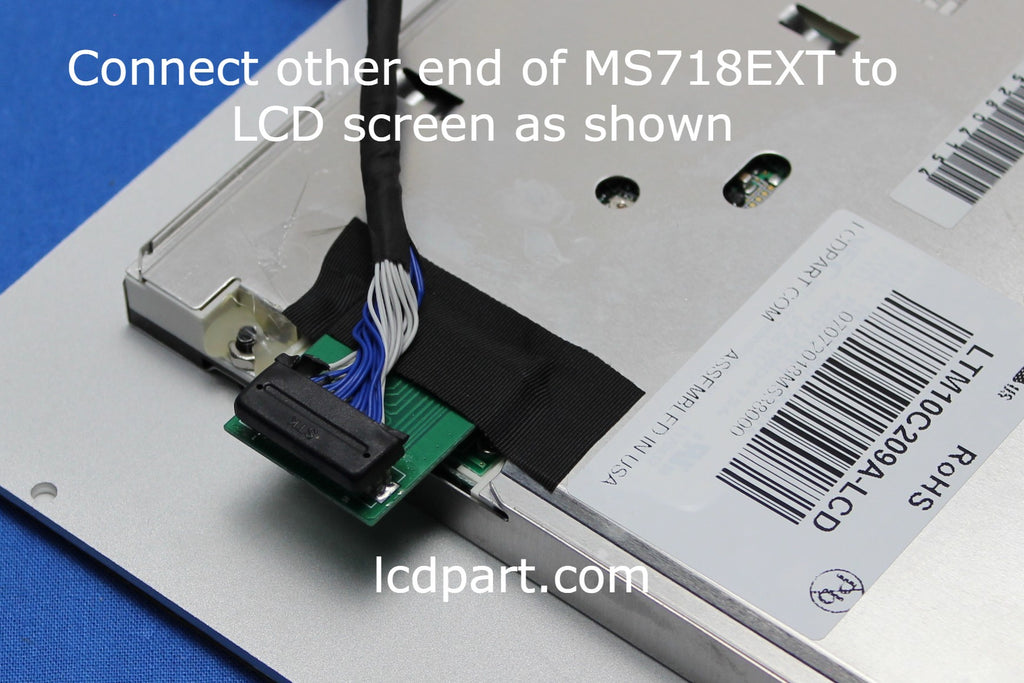

Connect Screen wire harness to LTM10C209A-LCD
Connect +12V or 24V DC to Red wire. Connect Negative (GND) to Black wire
LTM10C209A-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
LTM10C209A-LCD included the following items:

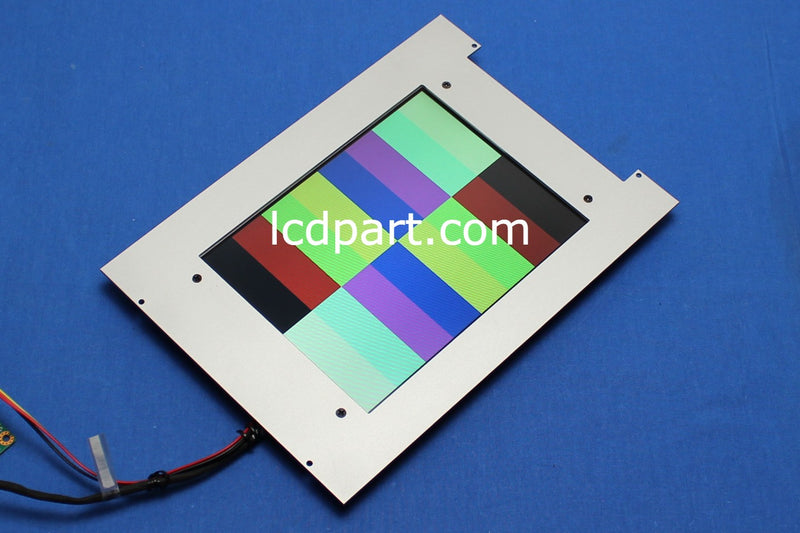

New 8.4 inch LCD screen ( it has upgraded to our Sunlight Readable LED kit)
MS610UB LED driver with Red and Black wires
