Description
New Toshiba LTM10C273. 90 days warranty.

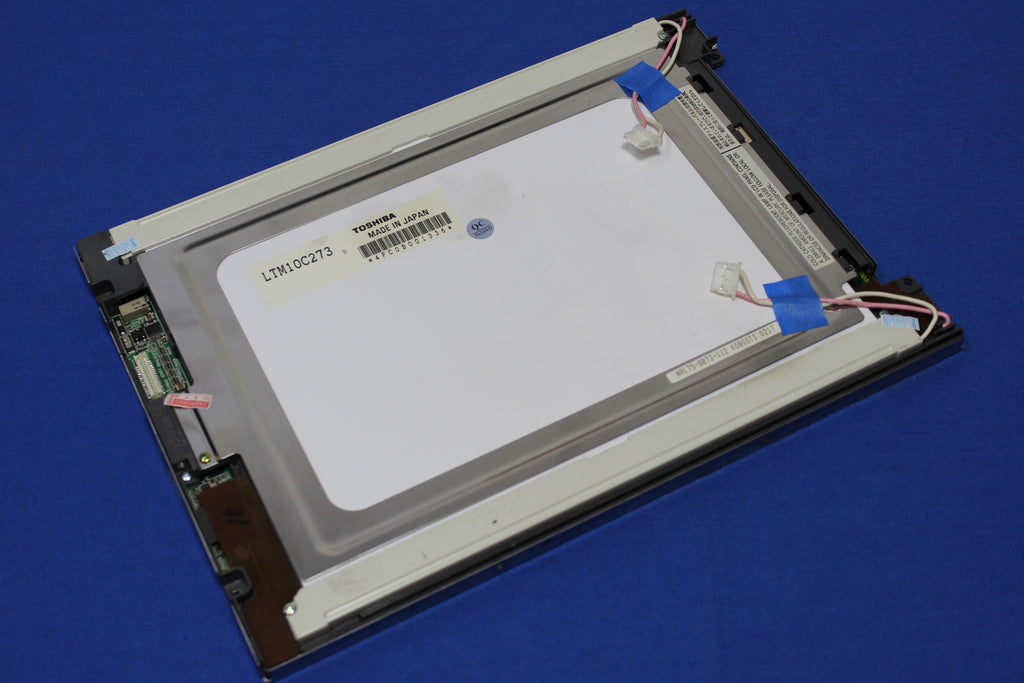

Toshiba LTM10C273, one of the most popular LCD panels in an industrial application. This 10.4 inch Toshiba LTM10C273 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54220LED5620X2+MS610UBLED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Toshiba LTM10C273 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 221.2(H) X 158.4(V) |
Outline dimension | [mm] | 265.0(W) X 188.8(H) X 12.0(D) |
Bolt Hole Dimension | [mm] | 130 X 130 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | TTL-DF9-31-3031 | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | 250 |
Contrast Ratio | 250:1 | |
Backlight Connector | BHR-03VS-1X2 | |
Backlight Inverter | Substitute MS179DI | |
Response time, Rising | msec | N/A |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | N/A |
Viewing Angle - Vertical | degree | N/A |
LCD controller kit | TTL-DF9-31-3031_800X600 | |
LED Backlight kit | UB54220LED5620X2+MS610UB |
