Description

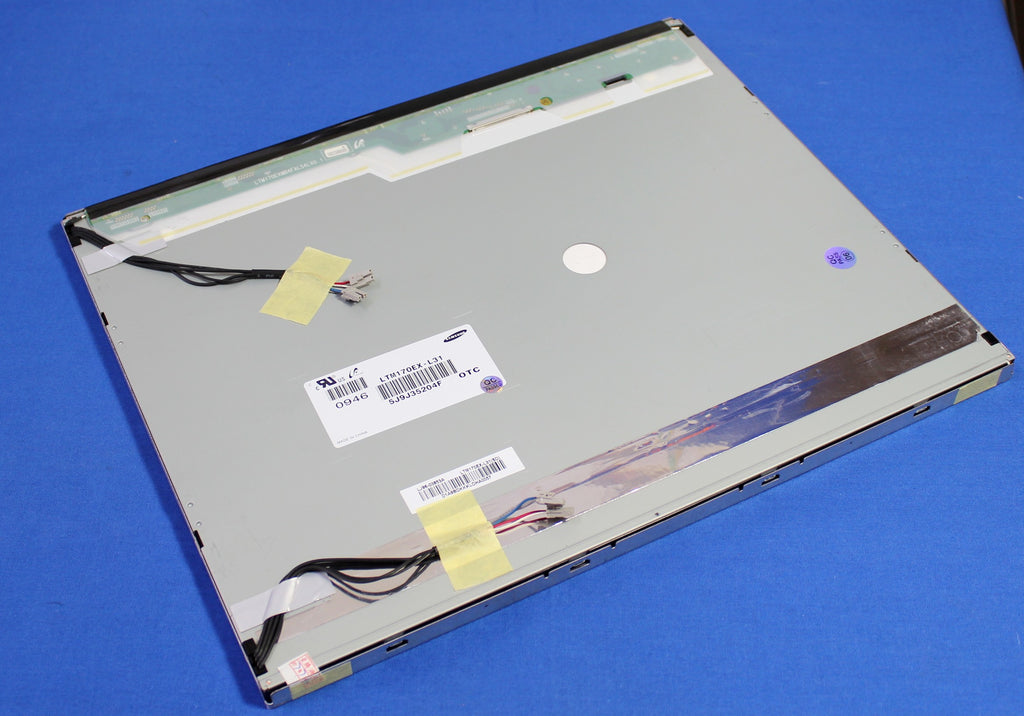

This refurbished Samsung LTM170EU-L11 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Samsung LTM170EU-L11, one of the most popular LCD panels in an industrial application. This 17 inch Samsung LTM170EU-L11 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB70345LED4221X2 LED kit is the best option(LED Upgrade kit for Samsung LTM170EU-L11 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications (BOX20) |
Screen Size | [inch] | 17 |
Native Resolution | 1280 X 1024 | |
Active Area | [mm] | 337.92(H) X 270.336 (V) |
Outline dimension | [mm] | 358.5(W) X 296.5(H) X 17(D) |
Bolt Hole Dimension | [mm] | 240 X 261 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | FIX-30S-2LVDS | |
Electrical Interface | Dual channel LVDS | |
White Luminance | [cd/m2] | 300 |
Contrast Ratio | 1000:1 | |
BackLight Connector | BHSR-02VS-1X4 | |
Backlight Inverter | Substitute MS30DI | |
Response time, Rising | msec | 1.3 |
Response time, Falling | msec | 3.7 |
Viewing Angle - Horizontal | degree | 89 |
Viewing Angle - Vertical | degree | 89 |
Compatible with | MS170RBHSR02X4FIX30D1 | |
LCD controller kit | FIX-30S-2LVDS_1280X1024 | |
LED Backlight kit | UB70345LED4221X2 | |
Direct Replacement LCD | MS170RUBFIX30D1 |
