MS709EXT, A LED wire harness


Price:
$9.99
 More payment options

Description

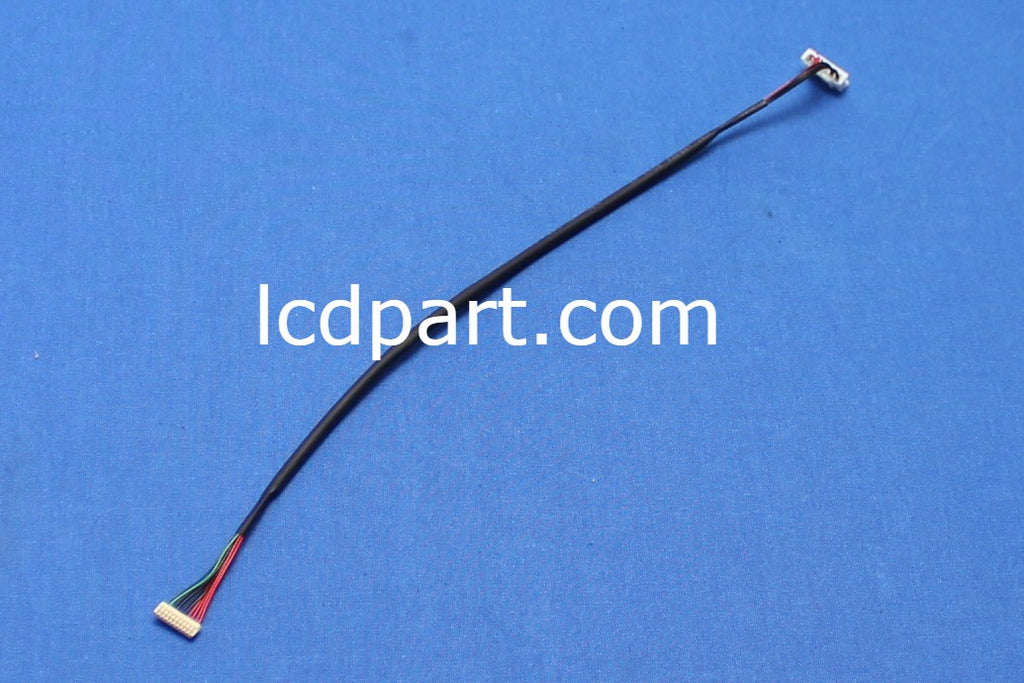

This is a 6 pin to 10 pin LED wire. The length of the wire is about 250mm. It is commonly used in AUO LCD screens.
6 pin 2.0mm pitch side: P1/P2=VIN, P3/P4=ENA/PWM, P5/P6=GND. Same pin out as our LCD controllers

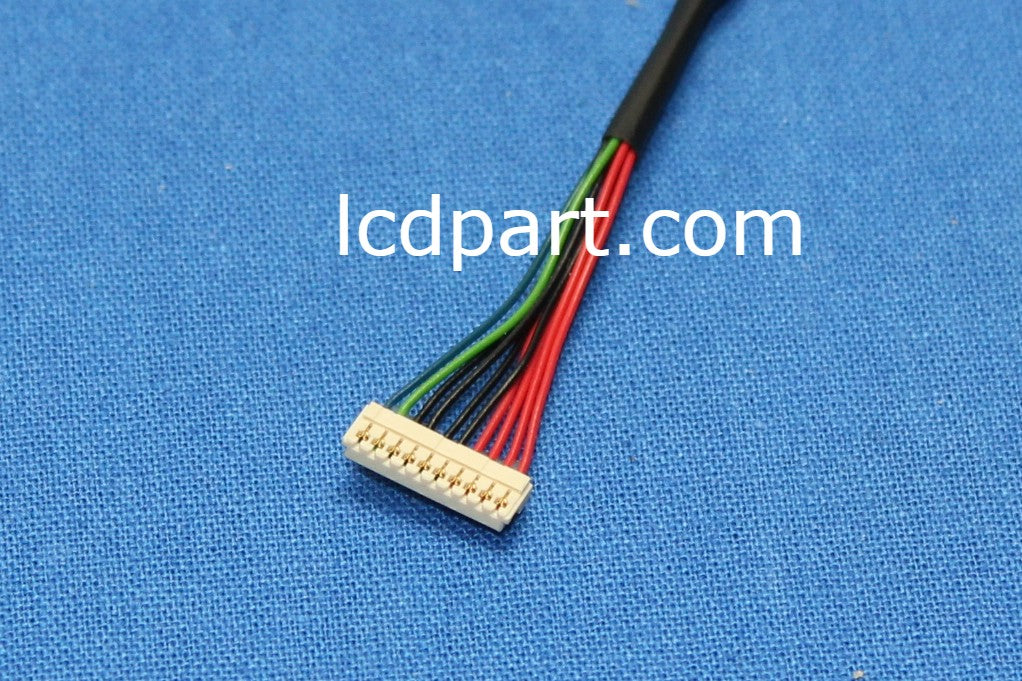

6 pin 1.25mm pitch side: P1~P4=VIN, P5~P8=GND, P9=ENA, P10=PWM
Connector type: 91209-01011(ACES) connectors
This LED wire harness is compatible with the following LCD Screens:
Manufacturer Size LCD Screen
CHIMEI 10.4"
G104X1-L03, G104X1-L04
CHIMEI 12.1" G121S1-L02
CHIMEI 12.1" G121X1-L03, G121X1-L04
