Description

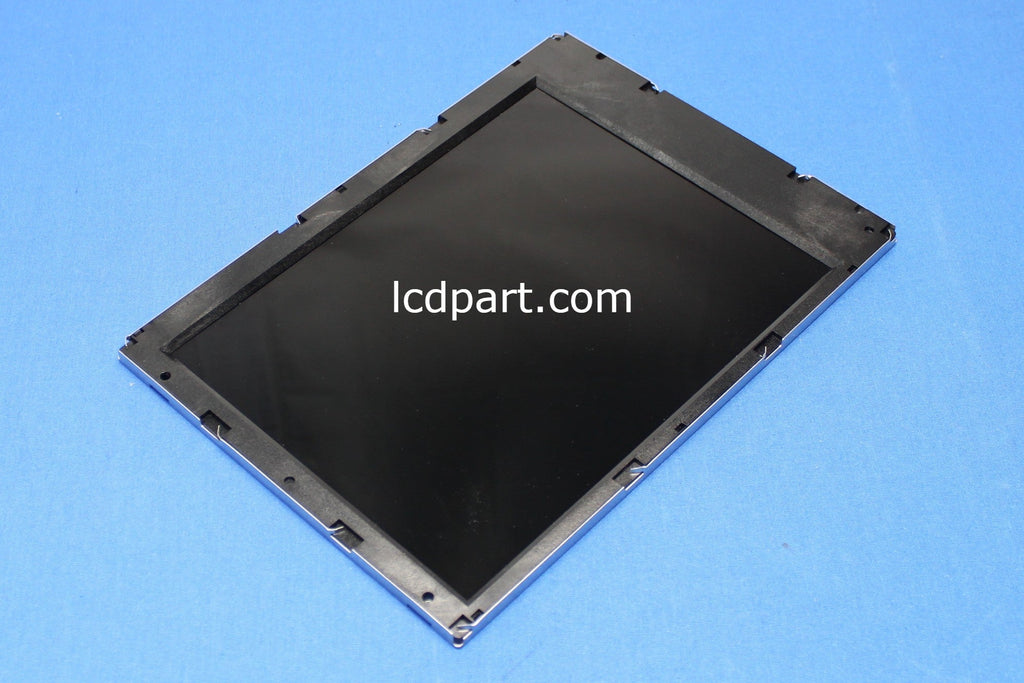

Brand New NEC NL6448CC33-30W LCD Screen. 90 days warranty.This 10.4 inch NEC NL6448CC33-30W does not have back light assembly.
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 211.2(H) X 158.4(V) |
Outline dimension | [mm] | 264.0(W) X 187.8(H) x 8.8(D) |
Bolt Hole Dimension | [mm] | 142 X 142 |
Input Voltage VDD | [Volt] | 3.3/5V |
Screen Wire Harness | IL-Z-10PL1-SMTY,IL-Z-13PL1-SMTY,IL-Z-11PL1-SMTY | |
Electrical Interface | TTL (6-bit) | |
White Luminance | [cd/m2] | N/A |
Contrast Ratio | 150:1 | |
BackLight Connector | No Backlight Assembly | |
Backlight Inverter | No Backlight Assembly | |
Response time, Rising | msec | 15 |
Response time, Falling | msec | 55 |
Viewing Angle - Horizontal | degree | 55 |
Viewing Angle - Vertical | degree | 50 |
